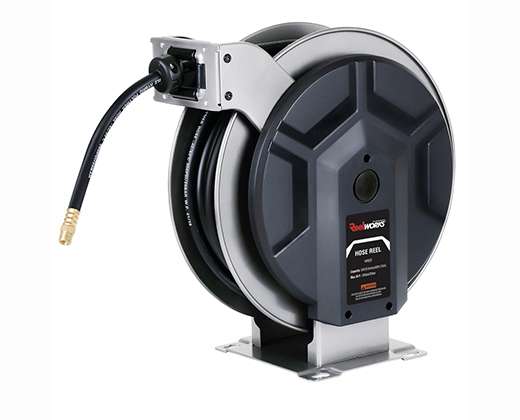

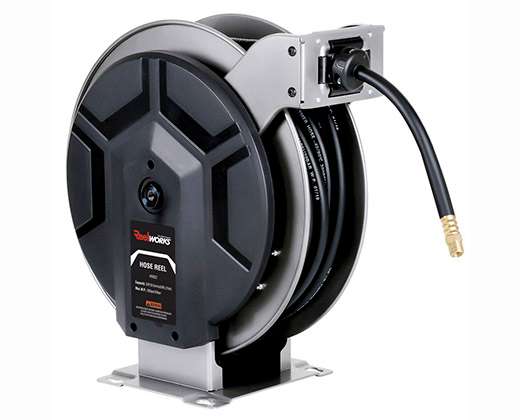

HR826
DOUBLE GUIDE ARM SPRING DRIVEN HOSE REEL
Hose I.D.Up to 1/2"
Hose LengthUp to 25m
Max Pressure400Bar
Inlet/OutletUp to 1/2"
Request A Quote
Description
-

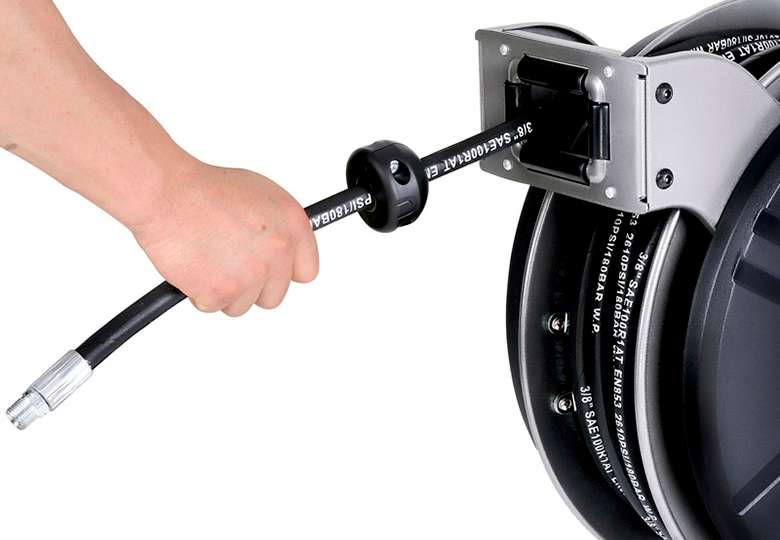

Hose can be stopped at any point
-
With innovative spring module design, the retraction can be slower
-
Modular design provides small inventory and easy maintenance
Key Features
-
The standard plate cover can be optional -

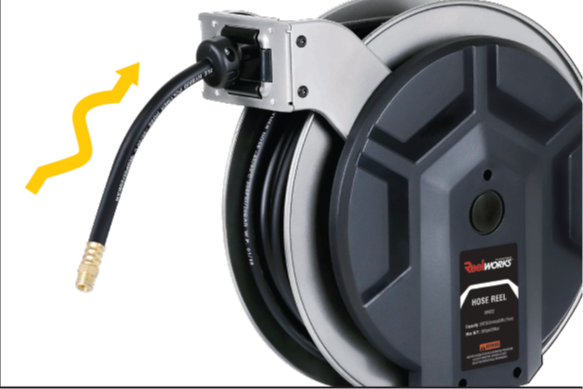

Smooth and easy pulling and retraction -
The speed control device provides an automatic hose rewinding in constant speed and a safer way
Technical Data
| Item No. | Hose l.D. | Hose Length | Working Pressure | Inlet/Outlet | Inlet Thread Type | Hose Material | Application |
| HR826.02 | 3/8" | 65'/20m | 300PSI/20Bar | 3/8" | NPT | Hybrid Polymer | Air/Water |
| HR826.04 | 1/2" | 65'/20m | 300PSI/20Bar | 1/2" | NPT | Hybrid Polymer | Air/Water |
| HR826.08 | 3/8" | 65'/20m | 2610PSI/180Bar | 3/8" | NPT | SAE R1 | Oil |
| HR826.09 | 1/2" | 65'/20m | 2320PSI/160Bar | 1/2" | NPT | SAE R1 | Oil |
HR826.11 | 3/8" | 65'/20m | 4800PSI/330bar | 3/8" | NPT | SAE R2 | Grease |
| HR826.12 | 3/8" | 20m | 20Bar | 3/8" | BSPT | Hybrid Polymer | Air/Water |
| HR826.14 | 1/2" | 20m | 20Bar | 1/2" | BSPT | Hybrid Polymer | Air/Water |
| HR826.15 | 3/8" | 20m | 20Bar | 3/8" | BSPT | NBR Rubber | Air/Water |
| HR826.16 | 3/8" | 25m | 20Bar | 3/8" | BSPT | NBR Rubber | Air/Water |
| HR826.17 | 1/2" | 20m | 20Bar | 1/2" | BSPT | NBR Rubber | Air/Water |
| HR826.18 | 3/8" | 20m | 180Bar | 3/8" | BSPT | SAE R1 | Oil |
| HR826.19 | 1/2" | 20m | 160Bar | 1/2" | BSPT | SAE R1 | Oil |
| HR826.20 | 1/4" | 20m | 400Bar | 1/4" | BSPT | SAE R2 | Grease |
| HR826.21 | 3/8" | 20m | 330Bar | 3/8" | BSPT | SAE R2 | Grease |
| HR826.22 | 3/8" | 20m | 180Bar | 3/8" | BSPT | SAE R1 (Blue) | High pressure hot water |
