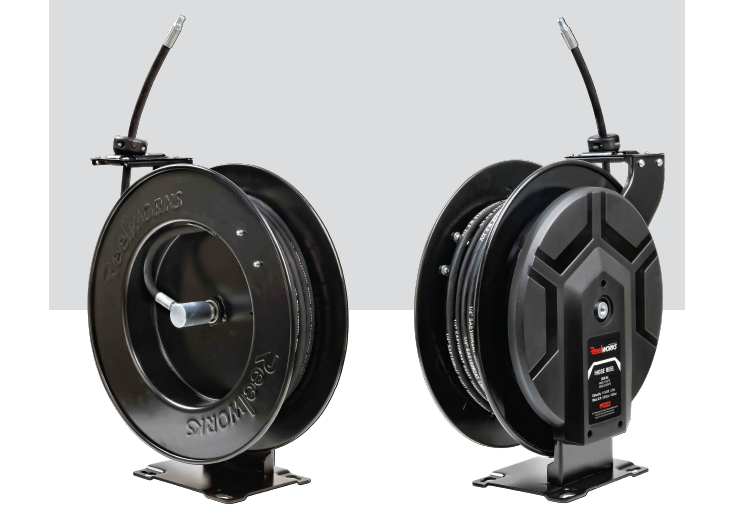

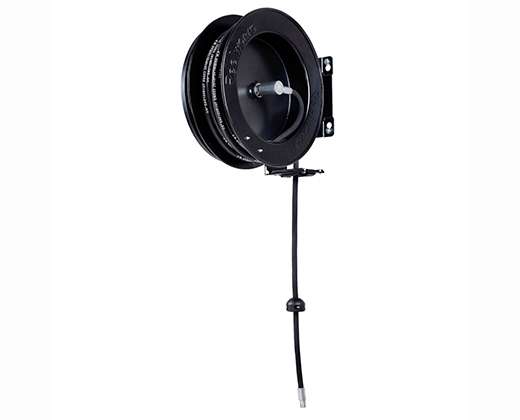

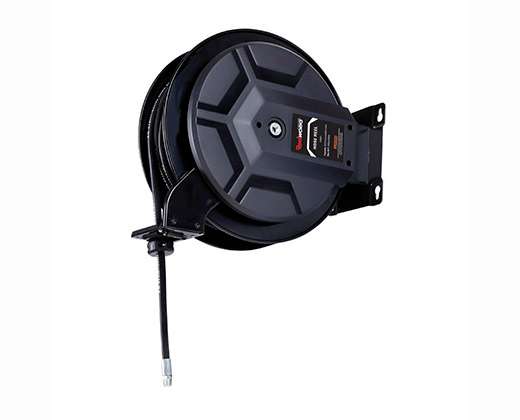

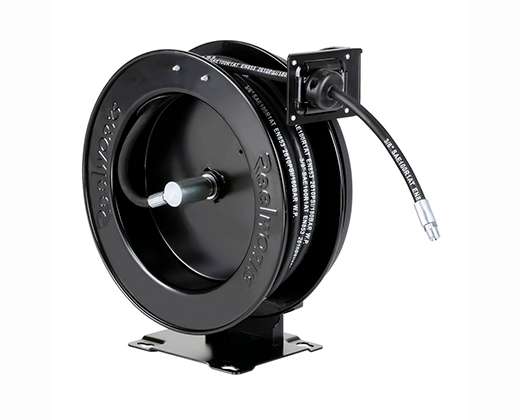

HR825
SINGLE GUIDE ARM SPRING DRIVEN HOSE REEL
Hose I.D.Up to 1/2"
Hose LengthUp to 65'/20m
Max Pressure 400Bar
lnlet/OutletUp to 1/2"
Request A Quote
Description
-
Hose can be STOPPED AT ANY POINT as users desire
-
With more secure experience, The RETRACTION time is twice SLOW than usual
-
MODULAR DESIGN makes inventory and maintenance more convenient
Key Features
-
The plate cover is standard or optional -
For Oxygen-acetylene Reels -
Pulling and retraction are smoothly, easily and effortlessly -
The speed control device makes an automatic rewinding of hoses in constant speed and safer way
Technical Data
| Item No. | Hose l.D. | Hose Length | Working Pressure | Inlet/Outlet | Inlet Thread Type | Hose Material | Application |
| HR825.05 | 3/8" | 65'/20m | 300PSI/20Bar | 3/8" | NPT | Hybrid Polymer | Air/Water |
| HR825.12 | 1/2" | 65'/20m | 2320PSI/160Bar | 1/2" | NPT | SAE R1 | Oil |
| HR825.13 | 1/4" | 65'/20m | 5800PSI/400Bar | 1/4" | NPT | SAE R2 | Grease |
| HR825.15 | 3/4" | 33'/10m | 150PSI/10Bar | 3/4" | NPT | EPDM Rubber | DEF |
HR825.16 | 3/4" | 33'/10m | 150PSI/10Bar | 3/4" | NPT | NBR Rubber | Air/Water |
| HR825.18 | 3/8" | 20m | 20Bar | 3/8" | BSPT | Hybrid Polymer | Air/Water |
| HR825.28 | 3/4" | 10m | 10Bar | 3/4" | BSPT | EPDM Rubber | DEF |
| HR825.29 | 3/4" | 10m | 10Bar | 3/4" | BSPT | NBR Rubber | Air/Water |
| HR825.61 | 3/8" | 65'/20m | 300PSI/20Bar | 3/8" | NPT | Hybrid Polymer | Air/Water |
| HR825.68 | 1/2" | 65'/20m | 2320PSI/160Bar | 1/2" | NPT | SAE R1 | Oil |
| HR825.69 | 1/4" | 65'/20m | 5800PSI/400Bar | 1/4" | NPT | SAE R2 | Grease |
| HR825.71 | 3/4" | 33'/10m | 150PSI/10Bar | 3/4" | NPT | EPDM Rubber | DEF |
| HR825.72 | 3/4" | 33'/10m | 150PSI/10Bar | 3/4" | NPT | NBR Rubber | Air/Water |
| HR825.74 | 3/8" | 20m | 20Bar | 3/8" | BSPT | Hybrid Polymer | Air/Water |
| HR825.81 | 1/2" | 20m | 160Bar | 1/2" | BSPT | SAE R1 | Oil |
| HR825.83 | 3/8" | 20m | 330Bar | 3/8" | BSPT | SAE R2 | Grease |
| HR825.84 | 3/4" | 10m | 10Bar | 3/4" | BSPT | EPDM Rubber | DEF |
| HR825.85 | 3/4" | 10m | 10Bar | 3/4" | BSPT | NBR Rubber | Air/Water |
