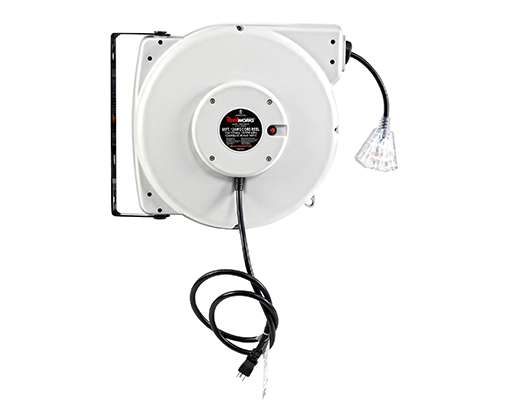

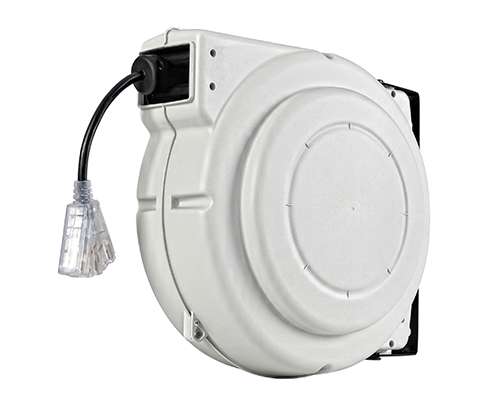

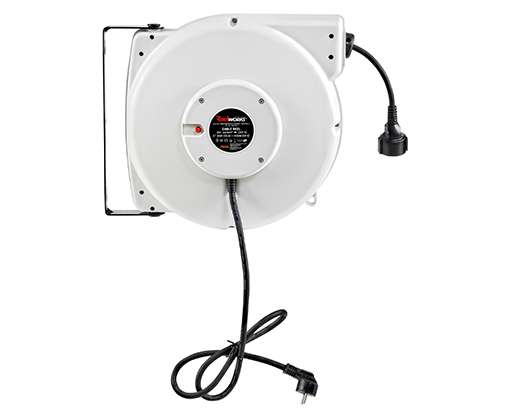

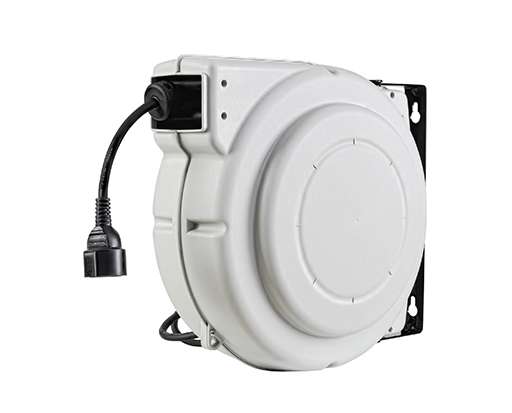

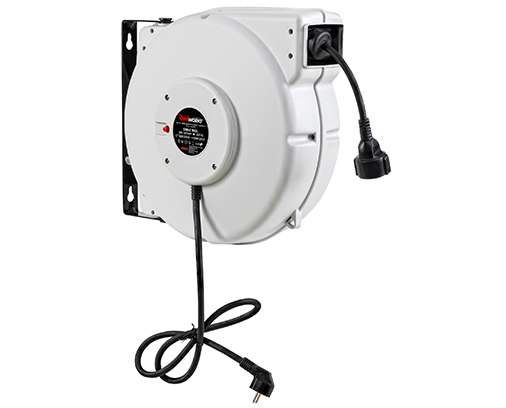

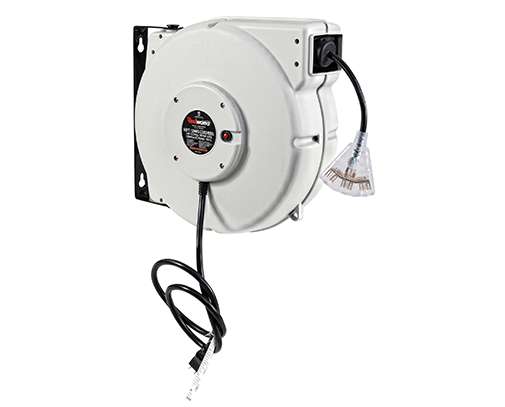

CORD AND CABLE REEL
Length Up to 80'/24.5m
Volts 125V, 230V
Max Amps/Power15A, 3200W
Max AWG/Section16AWG, 2.5mm²
Description
-
Heavy duty industrial cord/cable reel series feature long lengths of heavy gauge cord/cable
-
Spring retractable with latch
-
High quality impact resistant polypropylene case
-
With a superior low temperature resistance of cord/cable (-58°F~ 221°F) the better retraction performance in reel at low temperature
-
Adjustable cord/cable stop, 2-roller non-snag cord/cable guide
-
60"/1.5m lead-in cord/cable
-
For indoor use only
Key Features
-
Triple SocketTriple outlet with grounded receptacles
-

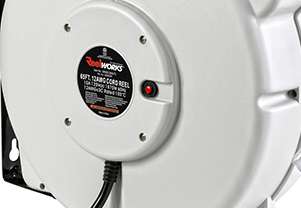

Over Load's BreakerCircuit Breaker
-
Light Hanging-HoleHook up your light safely
-

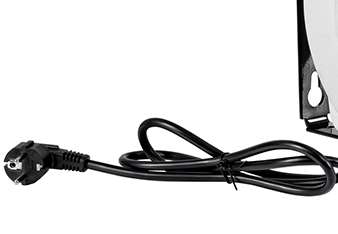

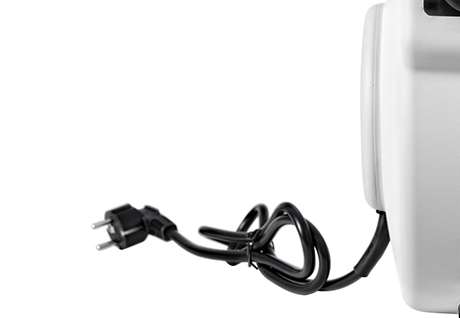

Cord/Cable Included60"/1.5m Lead-in cord/cable
-
Over Load's BreakerThermal protector
-
Light Hanging-HoleHook up your light safely
Technical Data
| Item No. | Description | Type | AWG/Section | Length | Volts | Amps/Power | Conductors |
| CR625.03 | Triple Outlet | SJT | 12AWG | 75'/22.9m | 125V | 15A | 3 |
| CR681.04 | Triple Outlet | SJTOW | 16AWG | 80'/24.5m | 125V | 10A | 3 |
| CR625.05 | Triple Outlet | SJTOW | 14AWG | 75'/22.9m | 125V | 13A | 3 |
| CR625.06 | Triple Outlet | SJTOW | 12AWG | 75'/22.9m | 125V | 15A | 3 |
| CR625.07 | Triple Outlet | SJTOW | 12AWG | 65'/20m | 125V | 15A | 3 |

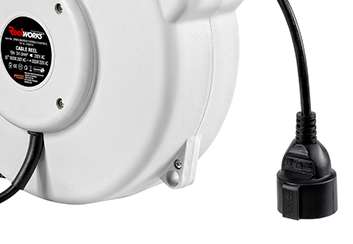

CR625.08 | German Socket | H05RN-F | 1.5mm² | 25m | 230V | 2000W | 3 |
| CR625.10 | German Socket | H07RN-F | 1.5mm² | 25m | 230V | 2000W | 3 |
| CR625.11 | German Socket | H07RN-F | 2.5mm² | 20m | 230V | 3200W | 3 |
| CR625.13 | French Socket | H05RN-F | 2.5mm² | 20m | 230V | 3200W | 3 |
| CR625.14 | French Socket | H07RN-F | 1.5mm² | 25m | 230V | 2000W | 3 |
| CR625.16 | French Socket | H05RN-F | 1.5mm² | 25m | 230V | 2000W | 3 |
Recommended Accessories
-

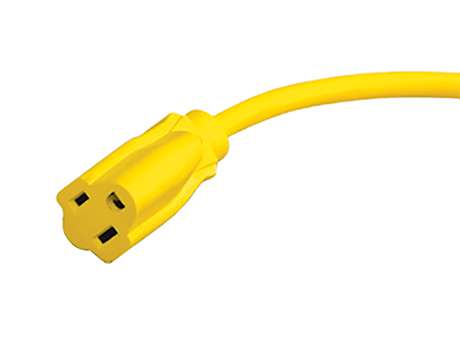

S1, Single outlet -

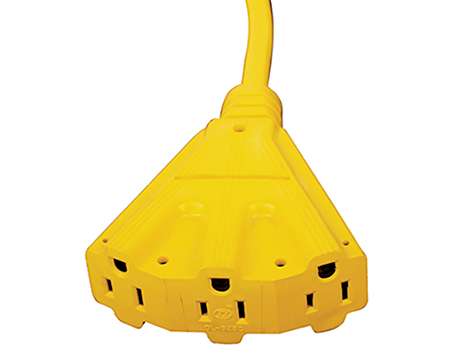

S3, Triple outlets -

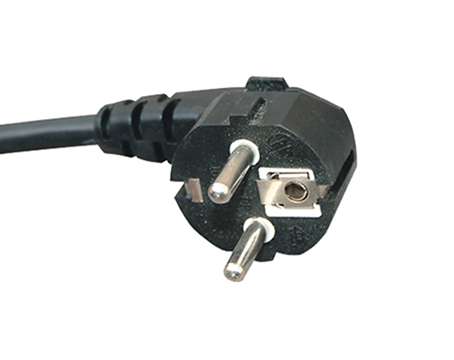

German Plug -

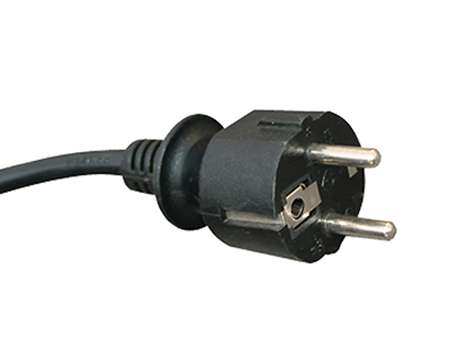

French Plug -

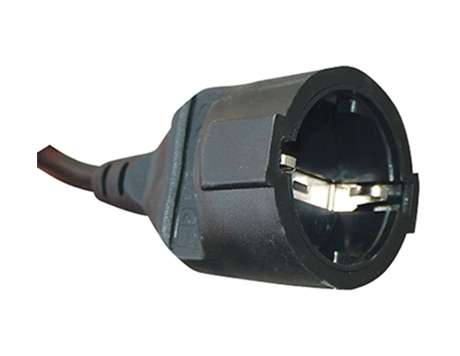

German Socket -

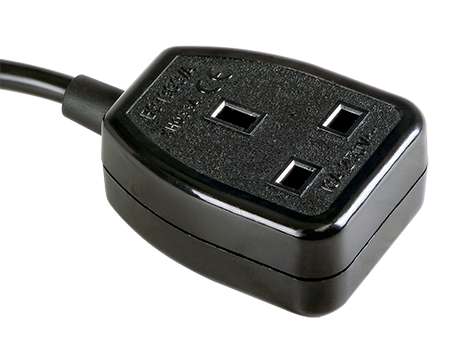

England Socket -

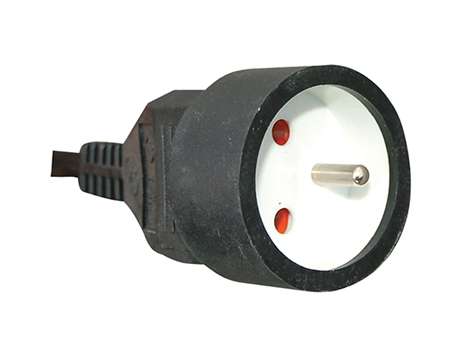

French Socket -

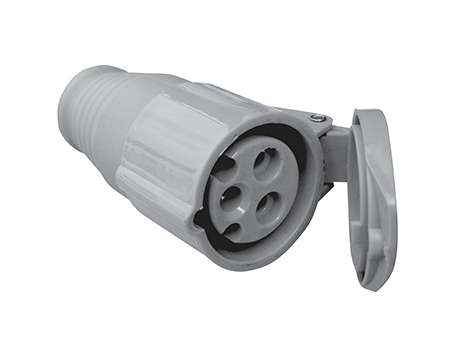

Industrial Socket
