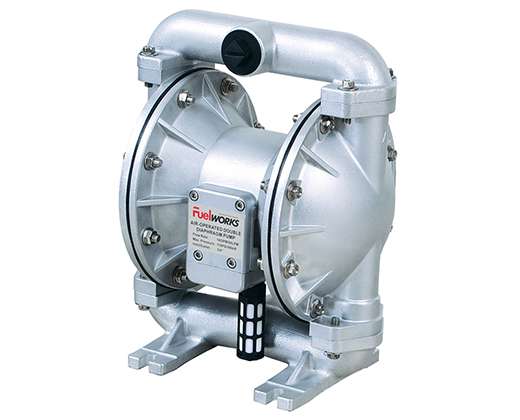

AIR-OPERATED DOUBLE DIAPHRAGM PUMP
Air Inlet1/4" NPT, 1/4" BSP
Fluid Outlet1"
Flow Rate 24GPM, 90LPM
Description
-
The diaphragm pump with convenient operating are widely used in various industries, such as petroleum, metallurgy, mining, coating material, printing, paper making, water treatment, automotive etc
-
Features an externally serviceable air distribution system and all-bolted construction
-
Chemical referance (Appendix A)
-
Nitrile: Diesel, Grease, Kerosene, Oil
FPM: General transfer, Common automative and industry fluids -
Maximum head: 164FT/50M
-
Maximum suction height: 10FT/3M
-
Pump body material: Aluminum
-
Max. pressure: 115PSI/8BAR
-
Air inlet: 1/4"
Technical Data
| Item No. | Application | FPM | Air Inlet | Fluid Outlet | Ball Valve | Flow Rate |
| FP201.03 | DEF | Nitrile | 1/4" NPT | 1" | PTFE | 24GPM |
| FP201.04 | DEF | Nitrile | 1/4" BSP | 1" | PTFE | 90LPM |
| FP201.05 | DEF | FPM | 1/4" NPT | 1" | PTFE | 24GPM |
| FP201.06 | DEF | FPM | 1/4" BSP | 1" | PTFE | 90LPM |
