FP200
UREA/DEF TRANSFER PUMP KIT
VoltageAC230V, AC120V
Power200W, 300W
Inlet/Outlet3/4"
Flow Rate20LPM, 25LPM, 8GPM
Request A Quote
Description
-
This dispensing unit is design to be easily moved from an IBC tank to another, with powder coated steel wall mounted plate, easy to install, versatile and compact
-

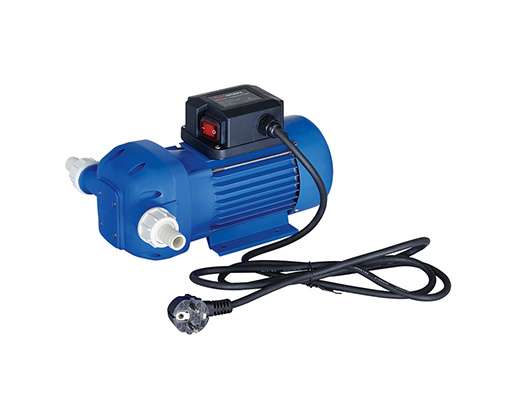

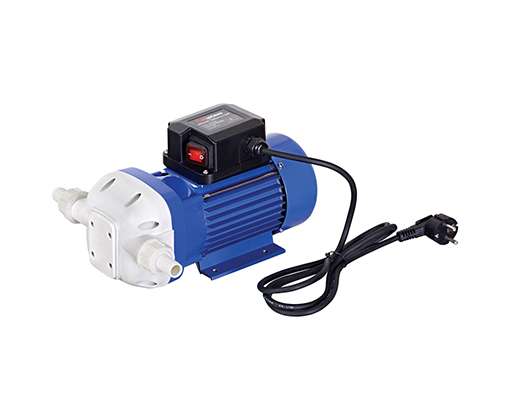

The unit basically has installed a self priming membrane pump, a plastic manual nozzle and EPDM suction and delivery hose to make an easier filling operation
-
The turbine measuring meter, Auto shut off nozzle and SEC connection will be optional
Technical Data
| Item No. | Application | Thread Type | Voltage | Inlet/Outlet | Power | Flow Rate |
| FP200.01 | DEF | German | AC230V | 3/4" | 200W | 25LPM |
| FP200.02 | DEF | French | AC230V | 3/4" | 200W | 25LPM |
| FP200.03 | DEF | Brazilian | AC230V | 1/2" | 200W | 20LPM |
| FP200.04 | DEF | Denmark | AC230V | 1/2" | 200W | 25LPM |
| FP200.05 | DEF | Australian | AC230V | 3/4" | 200W | 25LPM |
| FP200.06 | DEF | American | AC120V | 3/4" | 300W | 8LPM |
Request A Quote
