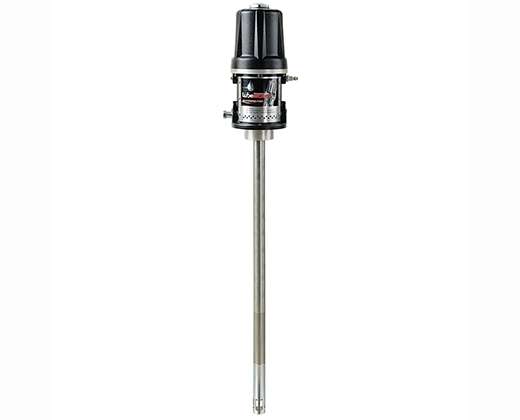

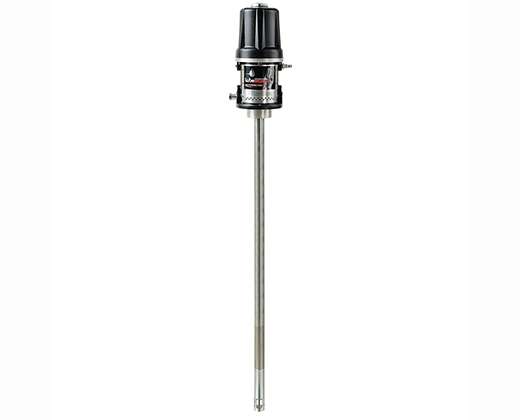

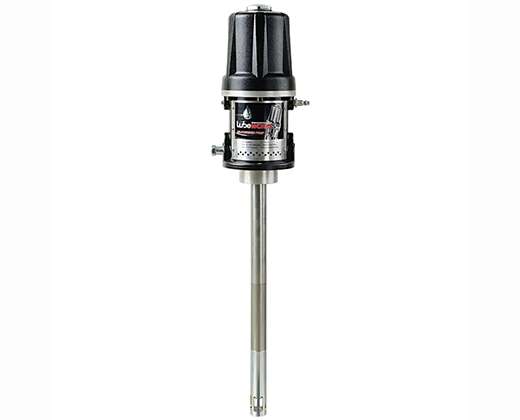

HEAVY DUTY AIR-OPERATED GREASE PUMP
Pressure Ratio75:1
Max Flow Rate1600g
Description
-
Designed for manufacturing or automotive service facilities
-
75:1 ratio allows grease to be pumped up to NLGI #2
-
Double acting pump provides continous flow operation
-
Rugged inlet cage withstands demanding shop environments
-
Full line of stationary and portable package configurations
-
High flow capability, stable function
Technical Data
| Item No. | Application | Air Inlet | Length | Fluid Outlet | Pressure Ratio | Inlet Size | Max Flow Rate |
| LP113.01 | Grease | Quick Plug (European) | 480mm | 3/8"BSPTFemale | 75:1 | 1/4" | 1600g |
| LP113.02 | Grease | Quick Plug (European) | 740mm | 3/8"BSPTFemale | 75:1 | 1/4" | 1600g |
| LP113.03 | Grease | Quick Plug (European) | 940mm | 3/8"BSPTFemale | 75:1 | 1/4" | 1600g |
| LP113.04 | Grease | NPT | 480mm | 3/8"NPT | 75:1 | 1/4" | 1600g |
