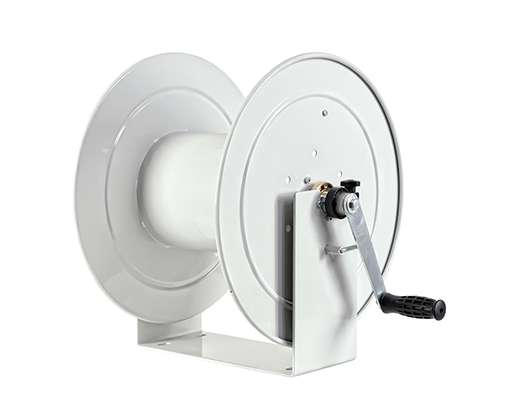

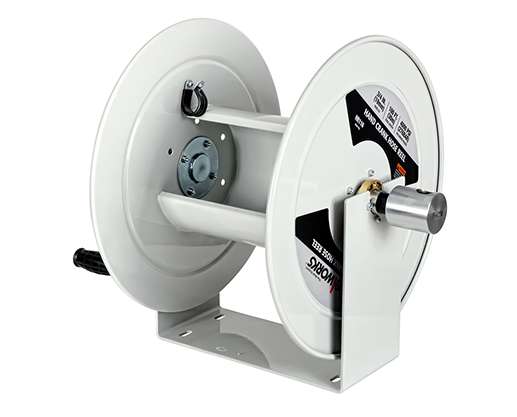

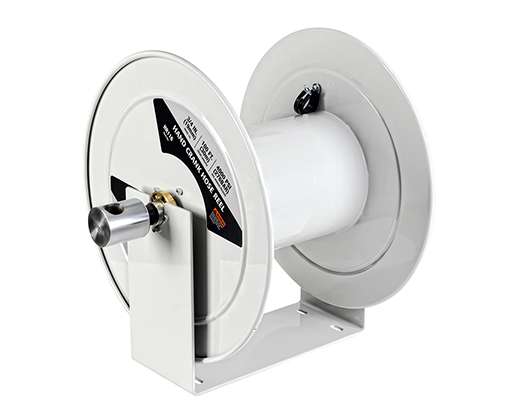

HEAVY DUTY CARBON STEEL HAND CRANK REEL
Hose I.D.Up to 1/2"
Hose LengthUp to 250'/76m
Max Pressure4000PSI/275Bar
Inlet/OutletUp to 1/2"
Description
-
Designed for all industrial and vehicle applications
-
Open drum design for no hassle hose wrap
-
Newly solid brass swivel with environmental protection material (for low pressure reel)
-
The larger drum can fit 30m/100ft 3/4" hose quite well
Key Features
-
Deceleration DeviceFor safety operation the device can effectively prevent the inertial force generated when pulling out the hose
-
Locking Mechanism"The drum locking mechanism can prevent the drum from rotating during operation effectively"
-
Larger Handle(7in/180mm) labor-saving
Technical Data
| Item No. | Hose l.D. | Hose Length | Working Pressure | Inlet/Outlet | Inlet Thread Type | Hose Material | Application |
| HR116.01 | 3/4" | 100'/30m | 4000PSI/275Bar | 3/4" | NPT | N/A | Grease/Oil |
| HR116.02 | 3/4" | 30m | 276Bar | 3/4" | BSPT | N/A | Grease/Oil |
| HR116.03 | 1/2" | 250'/76m | 4000PSI/275Bar | 1/2" | NPT | N/A | Grease/Oil |
| HR116.04 | 1/2" | 76m | 276Bar | 1/2" | BSPT | N/A | Grease/Oil |
| HR116.05 | 3/4" | 100'/30m | 300PSI/20Bar | 3/4" | NPT | N/A | Air/Water/Fuel |
| HR116.06 | 3/4" | 30m | 20Bar | 3/4" | BSPT | N/A | Air/Water/Fuel |
| HR116.07 | 1/2" | 250'/76m | 300PSI/20Bar | 1/2" | NPT | N/A | Air/Water/Fuel |
| HR116.08 | 1/2" | 76m | 20Bar | 1/2" | BSPT | N/A | Air/Water/Fuel |
