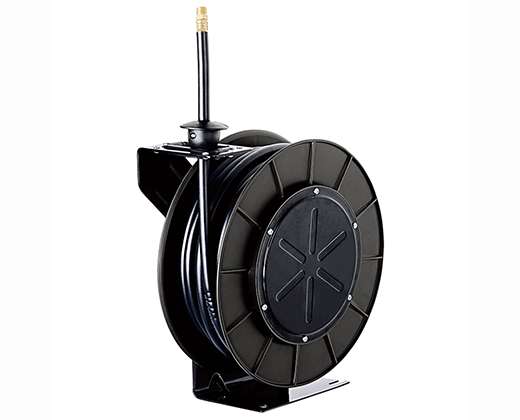

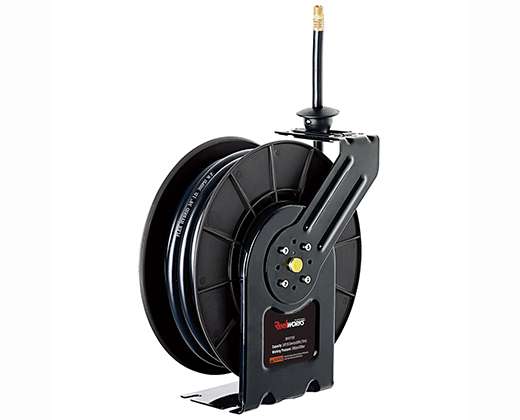

SPRING DRIVEN HOSE REEL
Hose I.D.Up to 3/8"
Hose LengthUp to 50'/15m
Max Pressure300PSI/20Bar
Inlet/OutletUp to 3/8"
Description
-
Designed for air and water applications
-
Steel construction with corrosion resistant powder coating
-
Durable drum made from high qualityimpact resistant polypropylene
-
Light and compact design but large hose capacity
-
Multi position locking
-
Versatile base design for stable wall, ceiling and floor mounting
-
24"/0.6m Lead in hose for option
Key Features
-

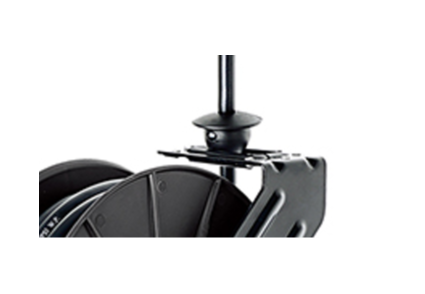

Adjustable Hose StopperSafety retracts and stops hose
-

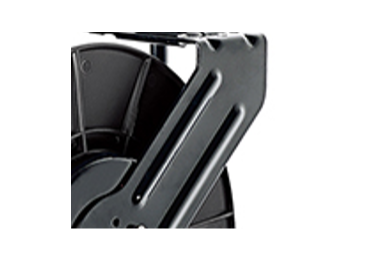

Structural StrengthHeavy gauge steel frame included stiffening ribs for strength
-
Compact Design, Big CapacityLighter weight for easy mounting 3/8"x50' hose capacity
-
Strength Hose DrumStronger components and high qualtiy plastic drum for durable use
-

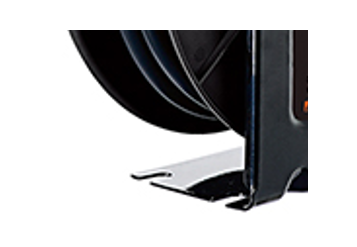

Versatile MountingBase design for stable wall, ceiling and floor mounting
Technical Data
| Item No. | Hose l.D. | Hose Length | Working Pressure | Inlet/Outlet | Inlet Thread Type | Hose Material | Application |
| HR810.01 | 3/8" | 50'/15m | 300PSI/20Bar | 1/4" | NPT | Hybrid Polymer | Air/Water |
| HR810.02 | 3/8" | 50'/15m | 300PSI/20Bar | 3/8" | NPT | Hybrid Polymer | Air/Water |
| HR810.03 | 3/8" | 15m | 20Bar | 3/8" | BSPT | Hybrid Polymer | Air/Water |
