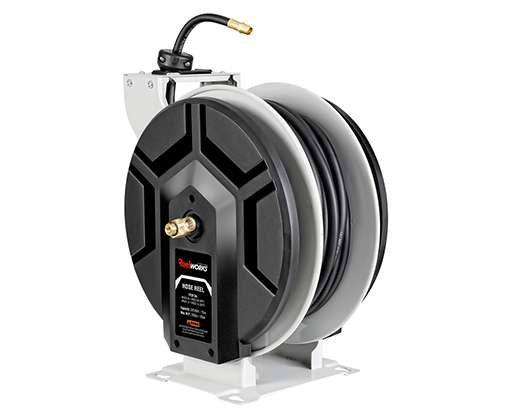

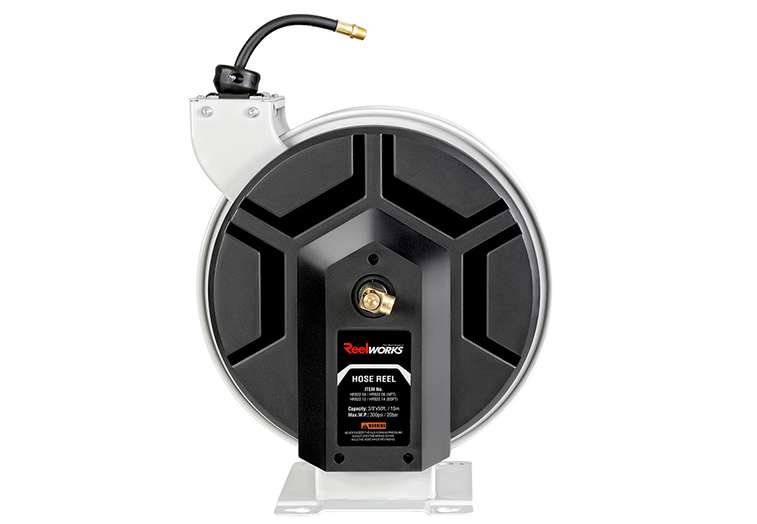

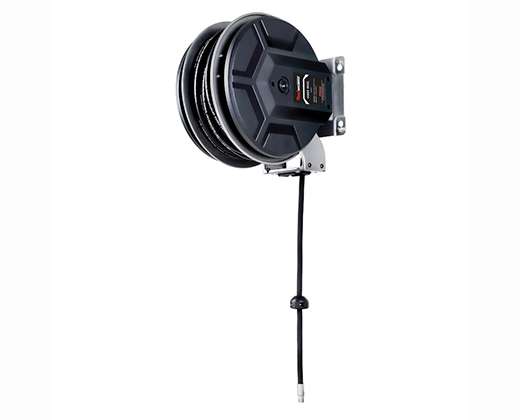

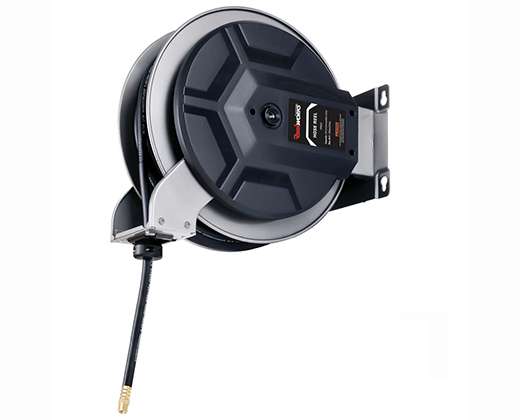

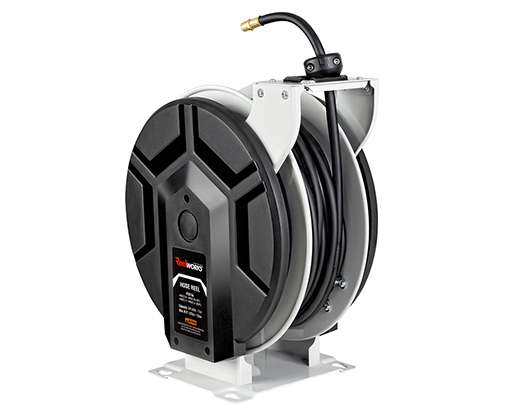

HR822
DOUBLE GUIDE ARM SPRING DRIVEN HOSE REEL
Hose I.D.Up to 1/2"
Hose LengthUp to 50'/15m
Max Pressure400Bar
Inlet/OutletUp to 1/2"
Request A Quote
Description
-
Hose can be STOPPED AT ANY POINT as users desire
-
With more secure experience, The RETRACTION time is twice SLOW than usual
-
MODULAR DESIGN makes inventory and maintenance more convenient
Key Features
-
The plate cover is standard or optional -

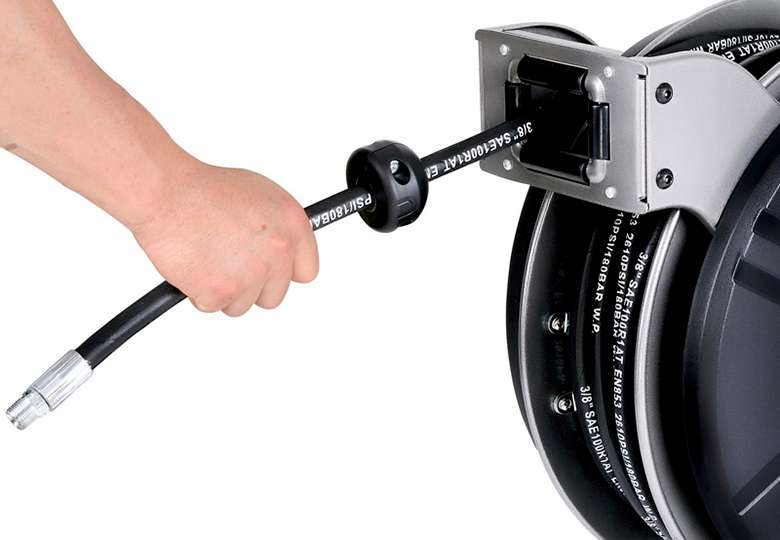

Pulling and retraction are smoothly, easily and effortlessly -
The speed control device makes an automatic rewinding of hoses in constant speed and safer way
Technical Data
| Item No. | Hose l.D. | Hose Length | Working Pressure | Inlet/Outlet | Inlet Thread Type | Hose Material | Application |
| HR822.04 | 3/8" | 50'/15m | 300PSI/20Bar | 3/8" | NPT | Hybrid Polymer | Air/Water |
| HR822.05 | 1/2" | 50'/15m | 300PSI/20Bar | 1/2" | NPT | Hybrid Polymer | Air/Water |
| HR822.06 | 3/8" | 50'/15m | 300PSI/20Bar | 3/8" | NPT | NBR Rubber | Air/Water |
| HR822.07 | 1/2" | 50'/15m | 300PSI/20Bar | 1/2" | NPT | NBR Rubber | Air/Water |
HR822.08 | 3/8" | 50'/15m | 2610PSI/180Bar | 3/8" | NPT | SAE R1 | Oil |
| HR822.09 | 1/2" | 50'/15m | 2320PSI/160Bar | 1/2" | NPT | SAE R1 | Oil |
| HR822.10 | 1/4" | 50'/15m | 5800PSI/400Bar | 1/4" | NPT | SAE R2 | Grease |
| HR822.11 | 3/8" | 50'/15m | 4800PSI/330bar | 3/8" | NPT | SAE R2 | Grease |
| HR822.12 | 3/8" | 15m | 20Bar | 3/8" | BSPT | Hybrid Polymer | Air/Water |
| HR822.13 | 1/2" | 15m | 20Bar | 1/2" | BSPT | Hybrid Polymer | Air/Water |
| HR822.14 | 3/8" | 15m | 20Bar | 3/8" | BSPT | NBR Rubber | Air/Water |
| HR822.15 | 1/2" | 15m | 20Bar | 1/2" | BSPT | NBR Rubber | Air/Water |
| HR822.16 | 3/8" | 15m | 180Bar | 3/8" | BSPT | SAE R1 | Oil |
| HR822.17 | 1/2" | 15m | 160Bar | 1/2" | BSPT | SAE R1 | Oil |
| HR822.18 | 1/4" | 15m | 400Bar | 1/4" | BSPT | SAE R2 | Grease |
| HR822.19 | 3/8" | 15m | 330Bar | 3/8" | BSPT | SAE R2 | Grease |
