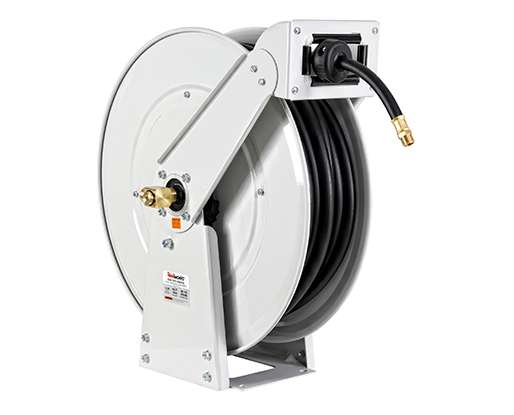

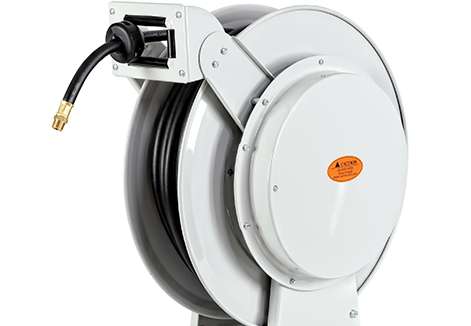

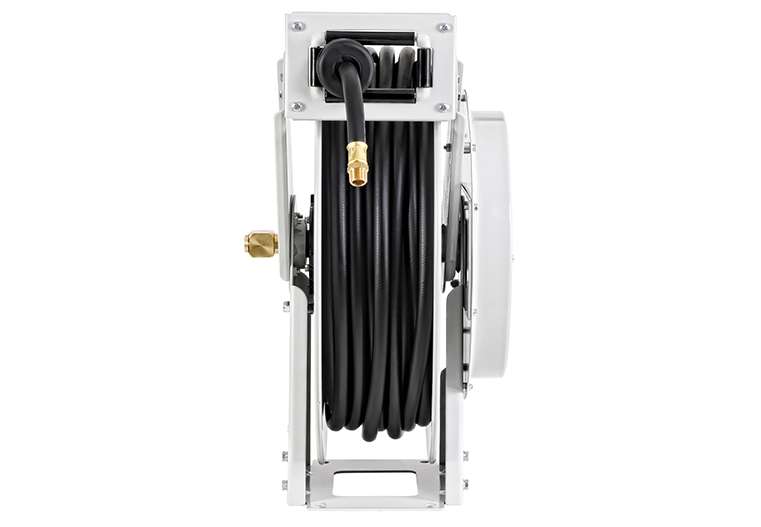

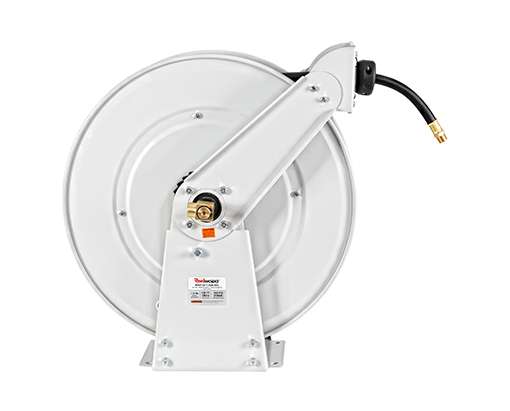

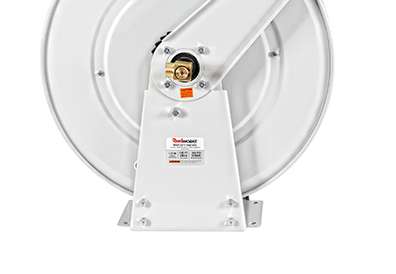

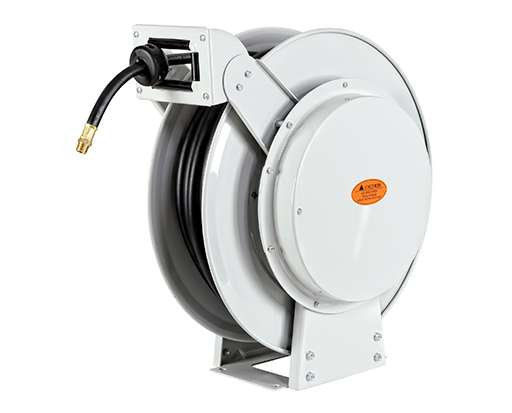

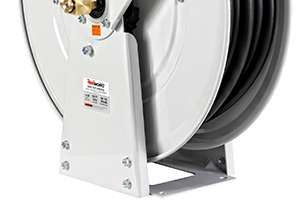

HR818
HEAVY DUTY HOSE REEL
Hose I.D.Up to 1"
Hose LengthUp to 100'/30m
Max PressureUp to 300PSI/20Bar
Inlet/OutletUp to 1"
Request A Quote
Description
-
These rugged, corrosion-resistant reels have large reeling capacity, suitable for a wide variety of heavy duty applications for mining and construction industries, marine
Key Features
-
Double Arm StructureOffers the greatest amount of stability for high volume air or water
-
Solid SwivelOutside swivel design easy for seal replacement and inlet hose can be connect in any direction
-
Large Reeling CapacityIndustrial designed reeling drum with powerful drive mechanism is capable to retract 1/2"x100' rubber hose
-
Wider Housing DesignWith wider housing design, the housing is not easy to be distortion, and hose retracted with range in order
Technical Data
HR861.16
| Item No. | Hose l.D. | Hose Length | Working Pressure | Inlet/Outlet | Inlet Thread Type | Hose Material | Application |
| HR818.01 | 1/2" | 100'/30m | 300PSI/20Bar | 1/2" | NPT | NBR | Air/Water |
| HR818.02 | 3/4" | 65'/20m | 300PSI/20Bar | 3/4" | NPT | NBR | Air/Water |
| HR818.03 | 1" | 50'/15m | 300PSI/20Bar | 1" | NPT | NBR | Air/Water |
| HR818.04 | 1/2" | 30m | 20Bar | 1/2" | BSPT | NBR | Air/Water |
| HR818.05 | 3/4" | 20m | 20Bar | 3/4" | BSPT | NBR | Air/Water |
| HR818.06 | 1" | 15m | 20Bar | 1" | BSPT | NBR | Air/Water |
| HR818.11 | 3/4" | 20m | 105Bar | 3/4" | BSPT | SAE R1 | Oil |
| HR818.12 | 1" | 15m | 87Bar | 1" | BSPT | SAE R1 | Oil |
Request A Quote
