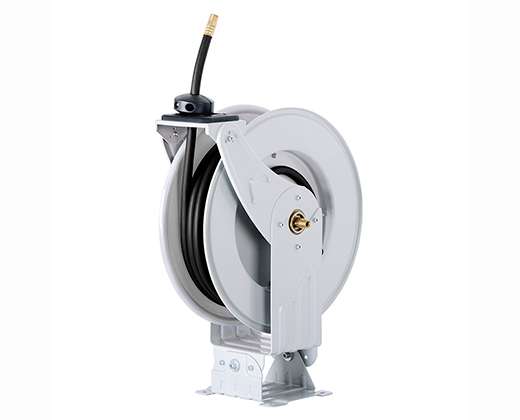

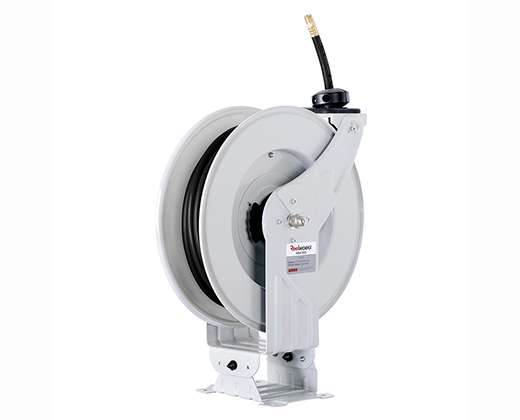

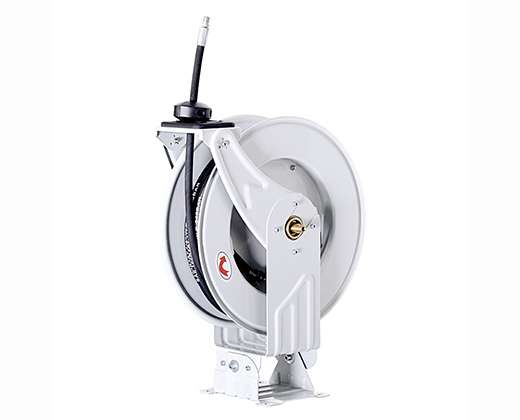

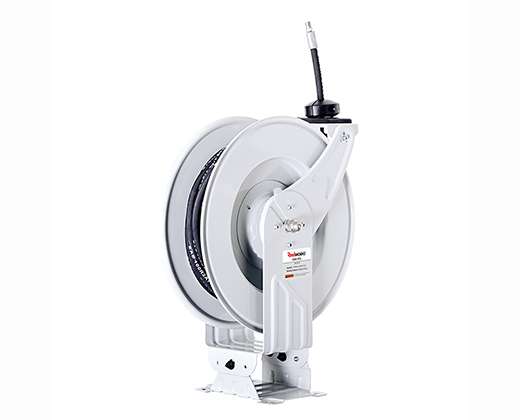

SPRING DRIVEN HOSE REEL
Hose I.D.Up to 1/2"
Hose LengthUp to 15m
Max Pressure160Bar
Inlet/OutletUp to 1/2"
Description
-
Heavy ribbed steel plate to ensure strong support
-
Special swivel joint for easy maintenance and repair
-
Ball bearing swivel joint structure, largely reducing the friction between swivel spool and swivel body
-
Spring located in the middle to ensure stability of the reel
Key Features
-
Robust LatchStrong latch mechanism assures long service life
-
Strengthened FrameHeavy ribbed steel plate to ensure strong support
-
Corrosion-ResistanceConstructed with heavy-duty powder coated steel
-
Structural StrengthHeavy gauge steel frame included stiffening ribs for strength
-
110° Swivel BaseConstructed with heavy-duty powder coated steel
-
Ball Bearing SwivelEasily disassembles the swivel spool for maintenance and repair
Technical Data
| Item No. | Hose l.D. | Hose Length | Working Pressure | Inlet/Outlet | Inlet Thread Type | Hose Material | Application |
| HR870.14 | 3/8" | 15m | 20Bar | 3/8" | BSPT | NBR | Air/Water |
| HR870.14 | 1/2" | 15m | 20Bar | 1/2" | BSPT | NBR | Air/Water |
| HR870.14 | 1/2" | 15m | 160Bar | 1/2" | BSPT | SAE R1 | Oil |
