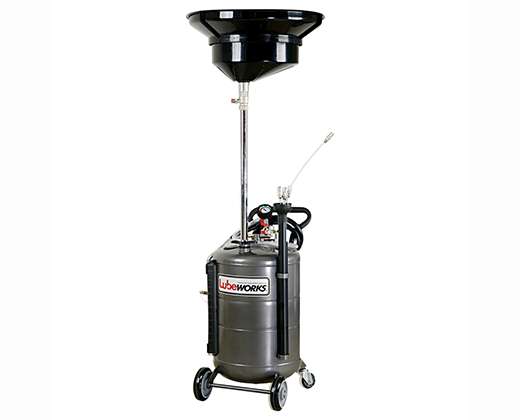

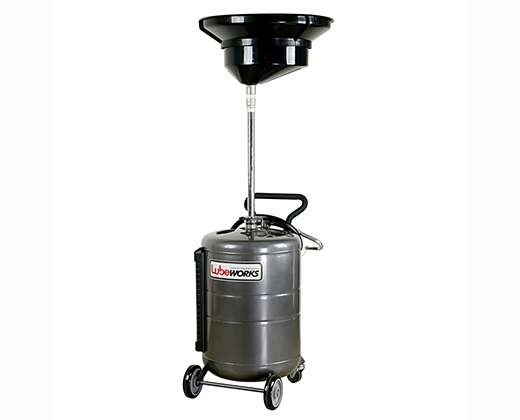

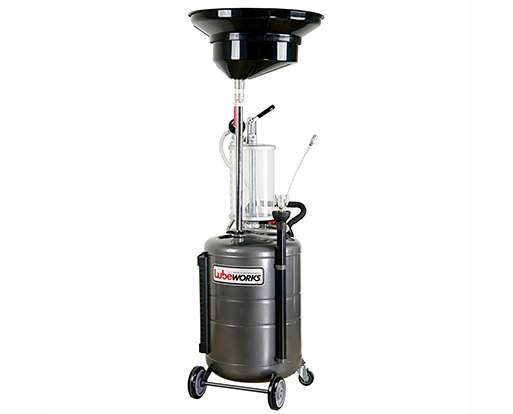

AIR OPERATED WASTE OIL DRAINER
Air InletBSPQuick Plug, 1/4"NPT
GravityYes, No
SuctionYes, No
Tank Capacity100L
Description
-
Suitable devices to drain, by gravity, waste oil from engines, gear boxes and differentials of all vehicles
-
Air operated oil drainer with center mounted adjustable collecting bowl
-
Can be equipped with a special support to allow filters to drain
-
Hand wheel connecting seat easy to adjust the height of the oil collecting bowl
-
WARNING: Do not use with corrosive or inflammable fluid
Key Features
-
Scale with protect cover to prevent damage -

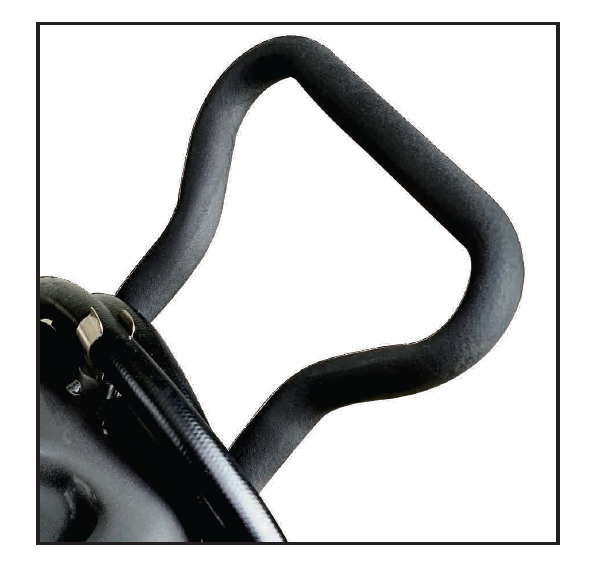

Specially designed handle sleeve more comfortable for use -

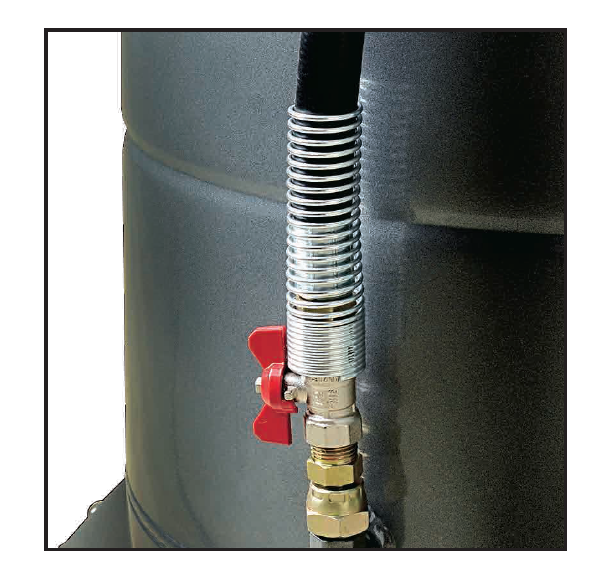

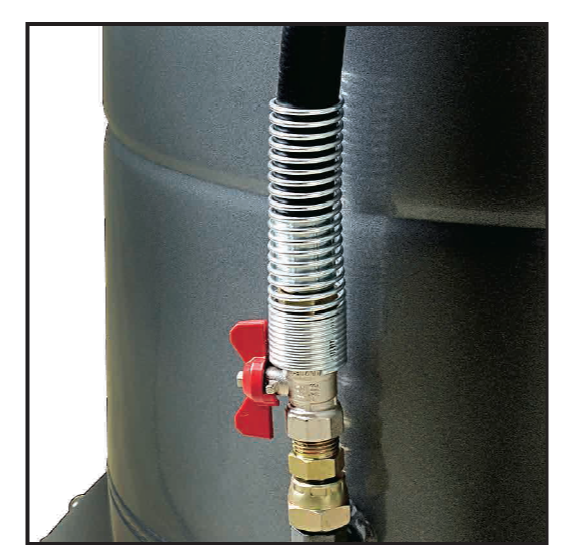

Superior draining hose, which is oil, heat, ozone and abrasion resistant -

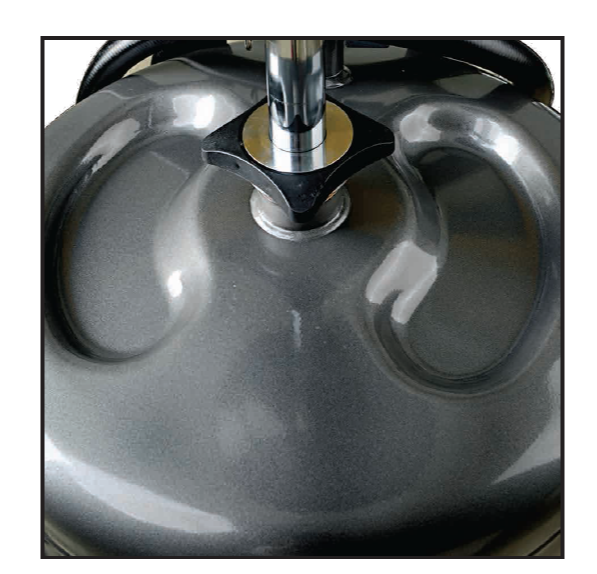

Integrative tool tray more convenient for place spare parts and tools -

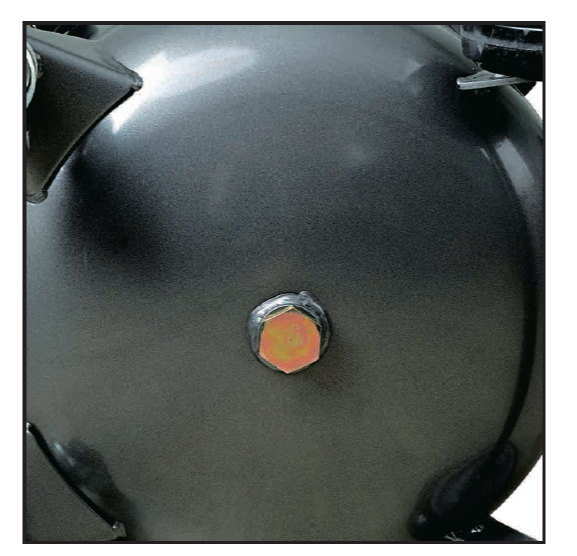

Be equipped with bottom outletperfect for fluid oil leakage empty -

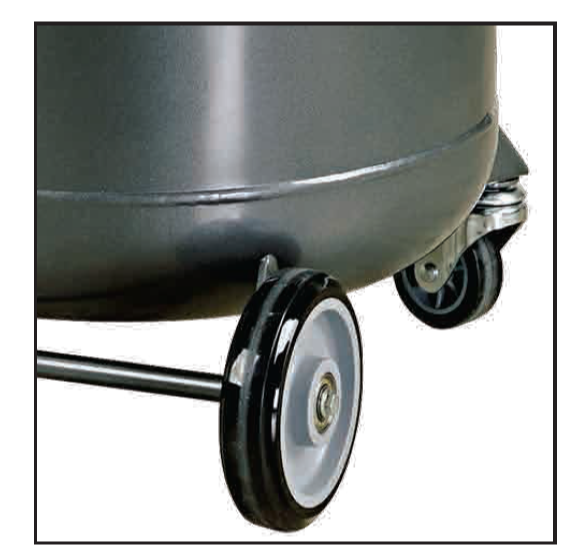

High quality caster make the moving more smoothly and noise-free
Technical Data
| Item No. | Air Inlet | Gravity | Suction | Chamber | Tank Capacity |
| OD140.01 | BSP Quick Plug | Yes | No | No | 100L |
| OD140.03 | BSP Quick Plug | No | Yes | Yes | 100L |
| OD140.04 | BSP Quick Plug | Yes | Yes | No | 100L |
| OD140.05 | BSP Quick Plug | Yes | Yes | Yes | 100L |
| OD140.09 | 1/4" NPT | Yes | No | No | 100L |
| OD140.12 | 1/4"NPT | Yes | Yes | Yes | 100L |
| OD140.13 | 1/4"NPT | Yes | Yes | Yes | 100L |
