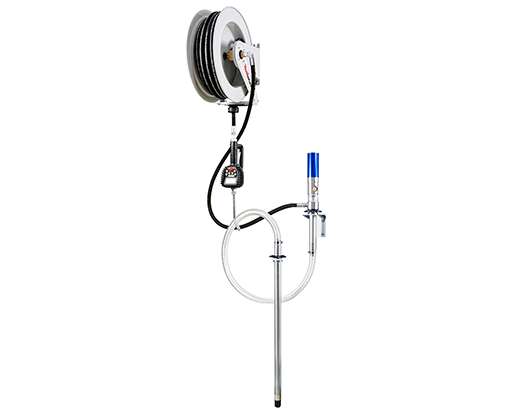

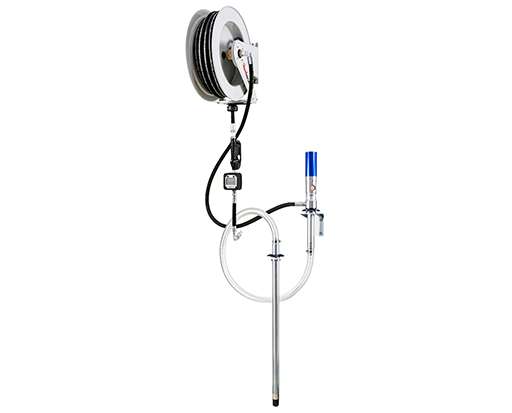

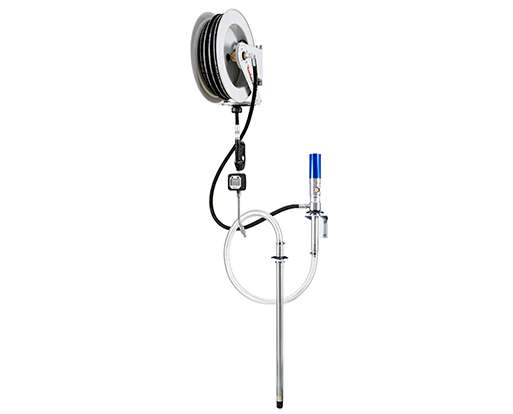

WALL MOUNTED OIL TRANSFER KITS
Pressure Ratio1:1 / 3:1 / 5:1
Working PressureUp to 50 bar / 750 psi
Drum Application180-220 L / 48-58 gallon
Description
-
Suitable for dispensing oil at medium/high viscosity for both mobile and fixed system at medium distance.
-
Wall Mounted Kits for empting reservoirs composed of pump, bracket, meter and hose.
-
Supplied with all required fittings and accessories for connection of pump to the air and oil lines or directly to a hose reel.
-
Rigid suction tube available.
Technical Data
| Kit Item No. | LK143.3112 / LK143.1112 | LK143.3312 / LK143.1312 | LK143.3512 / LK143.1512 |
| Kit Max. Working Pressure | 10 bar / 150 psi | 30 bar / 450 psi | 50 bar / 750 psi |
| Drum Application | 180-220 L / 48-58 gallon | 180-220 L / 48-58 gallon | 180-220 L / 48-58 gallon |
| Pump Pressure Ratio | 1:1 | 3:1 | 5:1 |
| LP101.10 / LP101.13 | LP102.04 / LP102.07 | LP103.01 / LP103.04 | |
| Wall Bracket Assembly Kit | WB30000 | WB10000 | WB10000 |

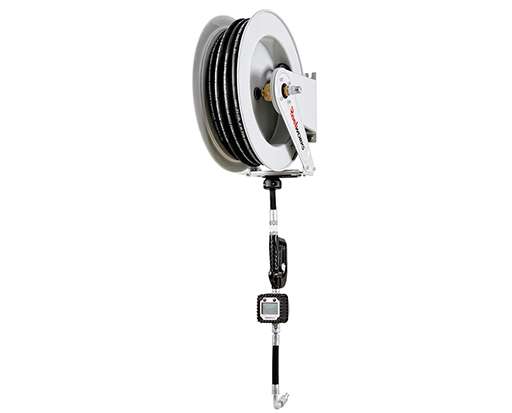

| Hose Reel | 1/2" x 15m BSP / NPT | 1/2" x 15m BSP / NPT | 1/2" x 15m BSP / NPT |
| HR832.44281 / HR832.24281 | HR832.44281 / HR832.24281 | HR832.44281 / HR832.24281 | |
Control Valve | Digital Dispensing Control Valve w/ Flexible Auto tip | Digital Dispensing Control Valve w/ Flexible Auto tip | Digital Dispensing Control Valve w/ Flexible Auto tip |
| LN104.31 / LN104.33 | LN104.31 / LN104.33 | LN104.31 / LN104.33 | |
